Dimensions

 1010mm X 570mm X 270mm (aluminium cover), plus needs 1000mm either side for removal of globe and quartz sleeve

  Weight

 36 kg

  Max. Flow Rate

 Up to 100 litres/minute at 70 PSI

  Max. Inlet Pressure

 70 PSI   /   482 KPA   /   4.8 BAR

  UVC Output

 + 40,000 nJ/sq. cm

  UV Lamp

 75W

  Filter Cartridges (3)

 Pleated filter to remove heavy sediment - 5 micron
 Carbon block to remove chlorine and other chemicals, toxins and odour
 Polypropylene filter to remove very fine sediment - 1 micron

  OPTIONS AVAILABLE

  1. Solenoid Valve that shuts off water supply when lamp fails
      -  Note that with this option, if the power supply fails, the water flow will not be impacted
         Please call us if you require an additional Solenoid that cuts the water off in the event of a power failure


  2. Manual Aquatrip programmable Leak Detection System with automatic shutoff valve

  OTHER FEATURES

The system is ready for use with:

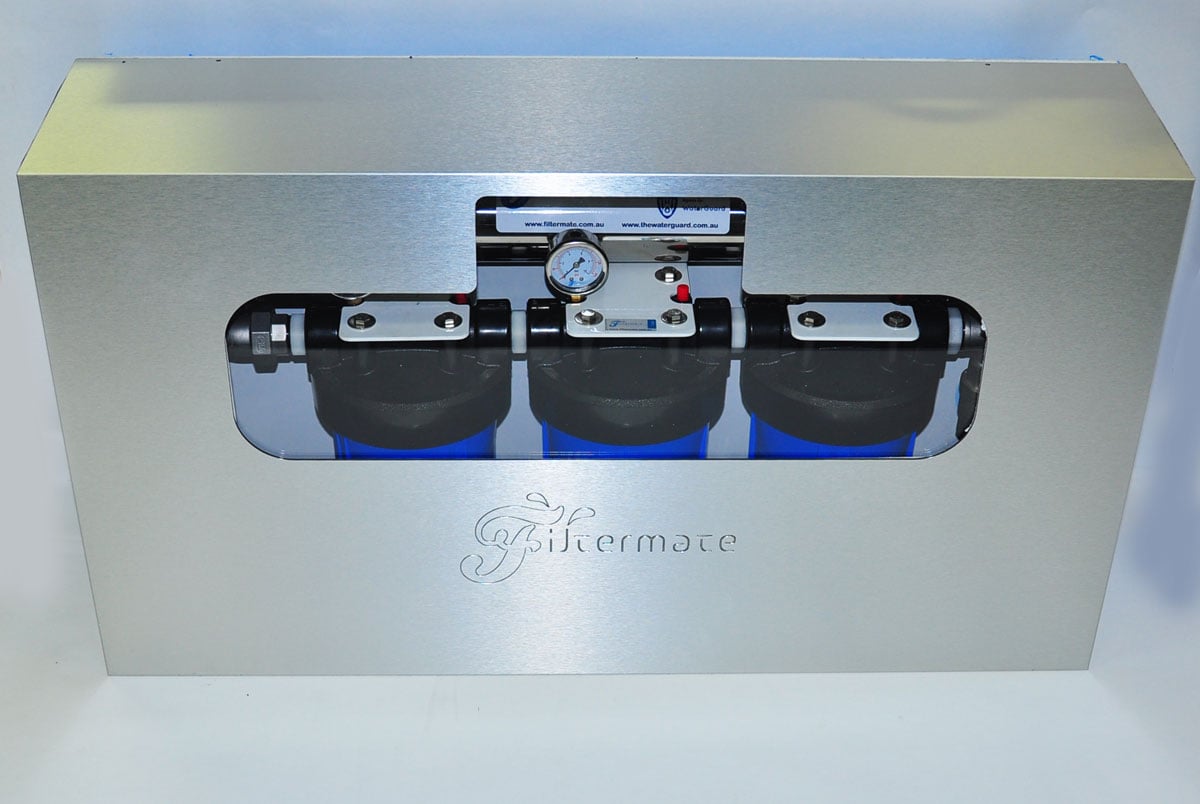

Electronic timer ballast; splashproof aluminuim box with UV resistant window; waterproof back board; filter lever; filter set and globe installed.

The systems comes ready for installation. This is typically where your mains water pipe enters your house or property. The unit is protected by an aluminium cover against rain and moisture, however sunlight can damage the plastic filter housings so if possible, install the system  undercover (eg under the eave). Allow at least a one metre clearance to the left and right of the unit for changing the lamp and quartz sleeve. Ensure a standard 10Amp power outlet with surge protector is available close by. If possible, the pump must not be plugged in to the same power outlet.

MAINTENANCE

To protect against power surges, warranty conditions require a surge protector to be fitted where the system plugs into the powerpoint (this is not an RCD).

  Filter Cartridges (3)
   Replace approximately every 3-6 months. This will depend on the quality and flow of water through the system.

  75W UV Lamp
   To be replaced every 12 months. The digital ballast has a day counter and will alarm when close to expiry.

  Full maintenance instructions can be found on the Maintenance page.
